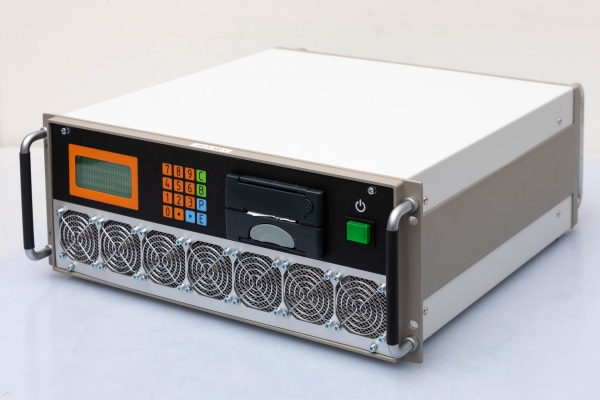

EAR-CH-50/50

The Charger-discharger EAR-CH series serves to test, charge, discharge and commis- sion all types of aircraft batteries (lead-acid, Ni-Cd, Li-ion, etc.). It stores the maintenance history of each battery during the whole charging-discharging cycle. Voltage and temperature measurements are performed on every element of the battery with special additional unit, which should be produced individually for each battery type. One unit provides service only for one battery. We can install more than 100 programs ac- cording to the clients’ requests. The units are created for all current and prospective accumulator developments.

General parameters Input voltage  (single-phase alternating) 230 +10% Input frequency, Hz  47-63 Input power, VA 3000 Quantity of batteries of simultaneous service, pcs  1 Charge current range, A 0,1-50 Discharge current range, A 50-0,1  Charge voltage range, V 0,7-48  Discharge voltage range, V 50-4,0  Insulation VDE 0160, Class 1  Report printing  In-build thermo printer  Power output cable length, m  2.5  Climatic temperature, °C  +1…+40  Weight, kg  30 Lenght 515 mm Width 485 mm Height 185mm Protection class IP20 Warranty 24 months
